Excavator grapple attachments - Demolition and sorting grabs are universal tools for demolition, sorting and loading all kind of materials. The name Multi Grapple is quite a good description for them. The basic structure is quite simple and similar for all brands: a rigid main body with two moving jaws mounted on both ends of the frame. The jaws are powered by one or two hydraulic cylinders and they are connected together with a steel bar so that they move simultaneously. For heavy applications these hydraulic grapples are always equipped with a powerful hydraulic rotator but for light loading and sorting jobs a tilt rotator can replace it.

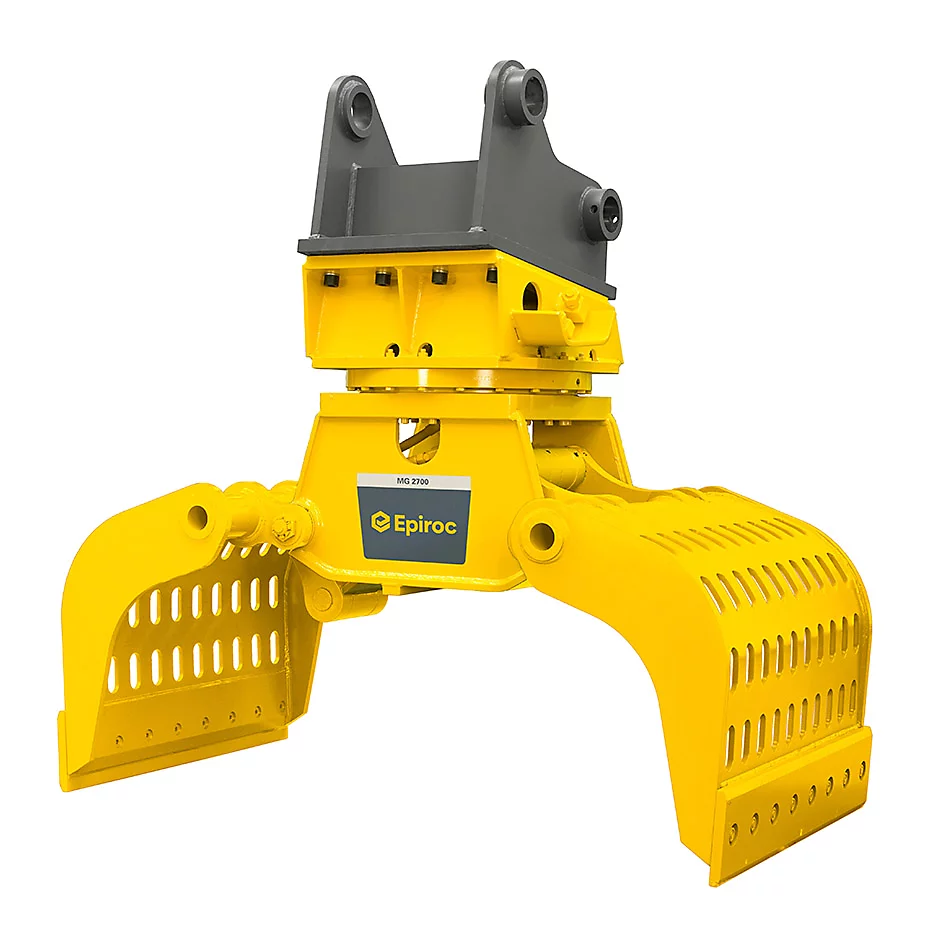

Excavator grapple for carriers of 28 - 50 tons (61,729-110,231 lb), used in sorting and loading applications
-
Carrier weight class ¹: 28 t - 50 t
-
Service weight (rotation version) ²: 2,750 kg
-
Loading volumen: 0.92 m³
-
Oil flow: 180 l/min - 200 l/min
-
Product weight (rotating version): 2,574 kg
-
Jaw opening, max: 2,270 mm
-
Grapple width: 1,200 mm
-
Max. closing force: 9 t
-
Operating pressure: 350 bar
-
Oil flow, rotation: 30 l/min - 35 l/min
