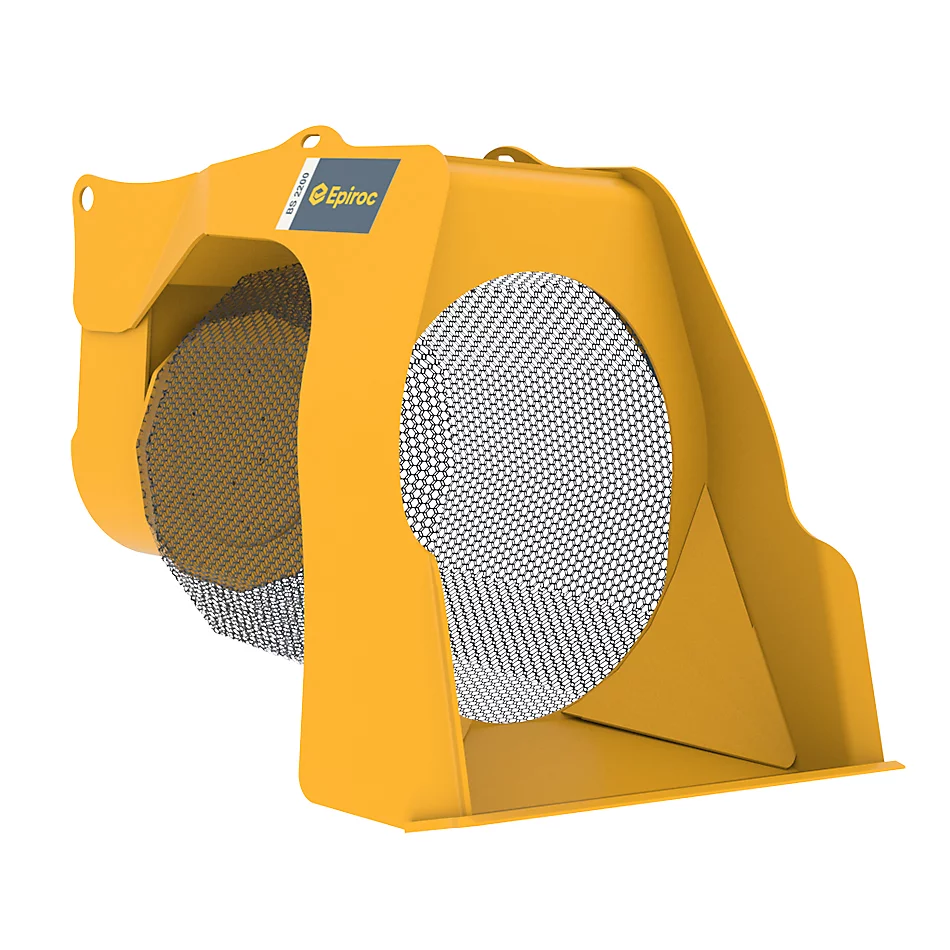

Available in two sizes for carriers between 18 to 38 tons
- Powerful hydraulic motor
- Interchangeable screening baskets with different mesh sizes
- Large hopper capacity
- Special wear resistant steel
|
BS rang
|
|
|
BS 1600
|
BS 2200
|
|
Carrier weight class ¹
|
|
t
|
18-25
|
24-38
|
|
Service weight ²
|
|
kg
|
1.710
|
2.450
|
|
Product weight ³
|
|
kg
|
1.550
|
2.200
|
|
Dimensions
|
Attachment length
|
mm
|
2.500
|
2.800
|
|
Height
|
mm
|
1.700
|
2.000
|
|
Width
|
mm
|
1.610
|
1.890
|
|
Screening capabilities
|
Drum diameter
|
mm
|
1.300
|
1.600
|
|
Drum depth
|
mm
|
1.230
|
1.425
|
|
Loading volume
|
m³
|
0,5 - 1,5
|
1 - 3
|
|
Adjustable grain sizes
|
mm
|
20 / 30 / 40 / 50 / 60 / 80
|
20 / 30 / 40 / 50 / 60 / 80
|
|
Hydraulics
|
Oil flow rate
|
l/min
|
40-150
|
40-150
|
|
Maximum operating pressure
|
bar
|
200
|
250
|
|
¹ Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrier manufacturer prior to attachment.
² Hydraulic bucket screener including adapter plate of medium size. Please note that the working weight can be considerably higher, depending on the adapter plate.
³ Hydraulic bucket screener
|
