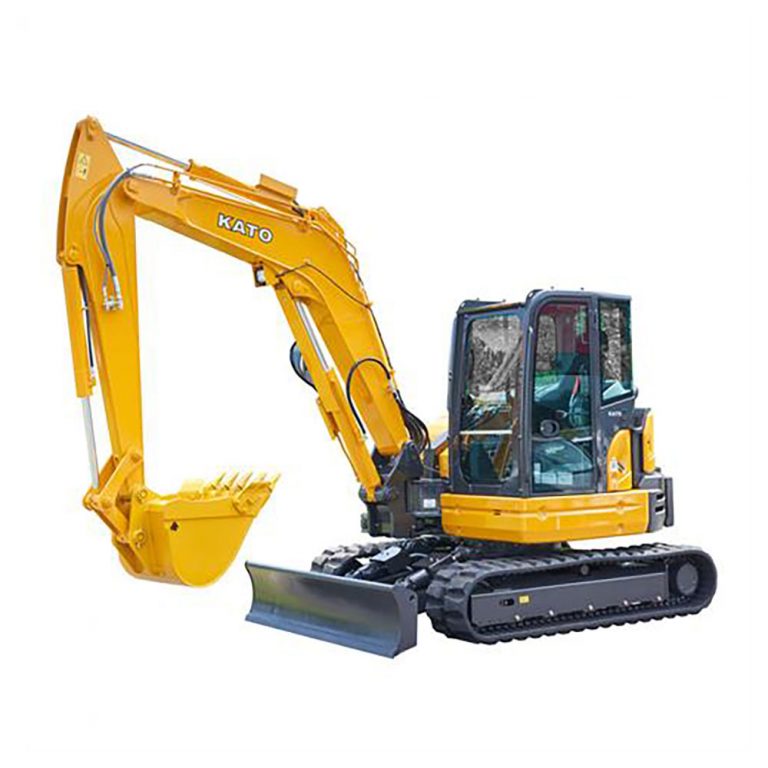

8.5 Ton HD85V5 KATO Mini Excavator

The KATO reduced tail swing 85V4 mini excavator has a strong undercarriage and blade driven by a double cylinder which contributes to lover the centre of gravity. It is fitted standard with an enclosed ROPS Cabin – this 85V5 unit leads the way in its class.The driving position is very comfortable thanks to the adjustable seat with a suspension/spring adjustment according to weight, horizontal adjustment according to driver height, and even the backrest is adjustable.

Ideal for civil construction, drainage work, landscaping and the Hire Industry. Multiple bucket options.

Features

  • Engine Yanmar 4TNV 98C
  • ROPS Cabin
  • Fuel Tank Capacity 110L
  • Swinging Boom (L/R) 80 degree/50 degree
  • Max Digging Depth 4320mm
  • Max Digging Radius 2720 mm
  • Max Digging Height 6920 mm
  • Max Dumping Height 4910 mm
  • Max Vertical Dig Depth 3460 mm
  • Corrosion-free resin fuel tank
  • Easy maintenance with wide opening engine covers
  • Rubber or steel tracks
  • Auxilary Piping

Specifications

Operating Weight: Cabin 8515 kg
Bucket Digging Force 55 kN
Front Turning Radius 2720mm / At right boom swing 2640mm
Track Width 2200mm
Download Brochure HD85V5 Brochure
